zGHN-3100C
Introduction

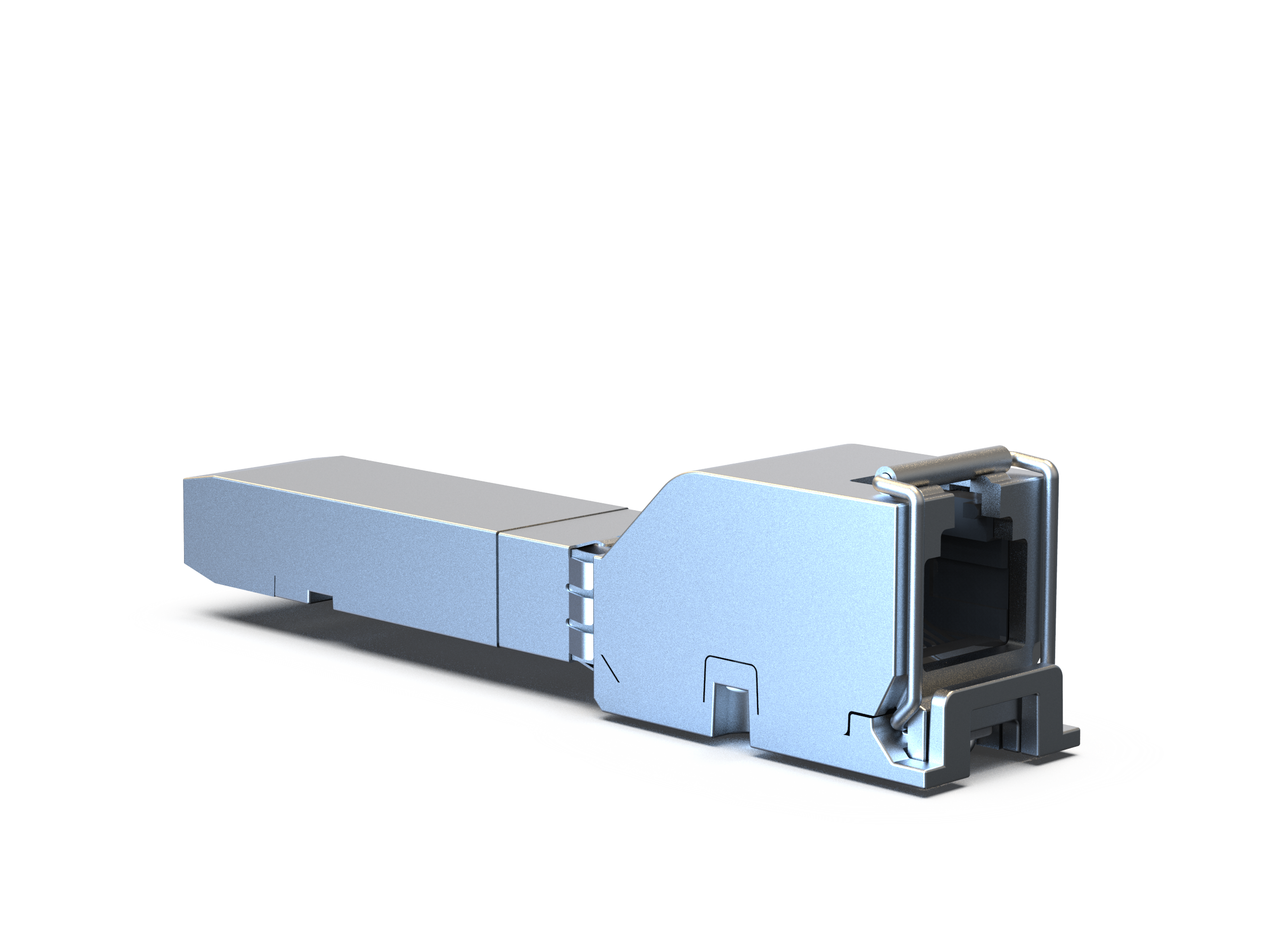

The zGHN-3100C is a compact, hot-pluggable SFP transceiver designed to deliver high-speed G.hn Wave-2 SISO broadband connectivity over existing twisted-pair telephone lines. Powered by MaxLinear 88LX5153 and 88LX2730 chipsets, it achieves PHY rates up to 2 Gbps and features built-in Ethernet bridging. Fully compliant with ITU-T G.hn standards and SFP MSA specifications, it integrates 128-bit AES encryption, ITU-T K.21 surge protection, and ultra-low power consumption under 1.98W into a plug-and-play SFP form factor.
2 Gbps G.hn Wave-2 Performance
Delivers up to 2 Gbps PHY rate over existing phone line twisted-pair cabling using the 2–200 MHz frequency band
Compact SFP MSA Form Factor
Plugs directly into standard SFP ports to instantly add G.hn copper backhaul capability to networking equipment
K.21 Surge Protection & Security
Integrated ITU-T K.21 lightning surge protection combined with 128-bit AES hardware encryption
Ultra-Low Power Efficiency
Consumes less than 1.98W of power with automated low-power and sleep mode support.
Main Baseband Processor
digital baseband processor
Analog Front-End Chipset
analog front end
Physical Media Connector
Host Bus Interface
Maximum PHY Rate
Operating Frequency Band
Supported G.hn Standards
Data Security Encryption
Surge Voltage Protection
Maximum Power Consumption
Physical Unit Dimensions
76.5mm x 16.0mm x 21.6mm
